Written by Sasha Dobrota — mechanical and microtechnology engineering student at ENSMM, Besançon, France. I repair and collect film cameras, develop my own film, and built Photon-1, a precision shutter speed tester for camera technicians.
Film cameras built in the 1960s and 70s are still shooting today. Not because they got lucky — because they were built to last. But after decades of use, even the best mechanical cameras need attention. Shutters slow down. Foam deteriorates. Capacitors fail. This guide covers everything you need to know about film camera repair — from deciding whether it's worth it, to the tools you'll need, to the repairs you can realistically tackle yourself.
Is it worth repairing an old film camera?
Quick answer: Yes, in most cases. A mechanical film camera from the 1960s–80s can be fully restored for €30–150 in parts and service. If the body is intact and the shutter fires, repair is almost always worth it — these cameras are built to last decades with basic maintenance.
The economics are straightforward. A well-serviced Minolta X-700 or Olympus OM-1 will outperform a cheap modern camera and cost a fraction of what a new film camera commands today. The real question isn't whether to repair — it's which repairs are worth doing yourself and which require a specialist.
The main exception: cameras with severe corrosion, shattered prisms, or broken film transport mechanisms. These can cost more to repair than the camera is worth. For everything else, repair is the right call.
What is a CLA — and does your camera need one?
Quick answer: CLA stands for Clean, Lube, Adjust. It is a full service of the camera's mechanical systems — cleaning old grease, lubricating moving parts, and adjusting shutter speeds and focus. Most cameras benefit from a CLA every 10–20 years of regular use.
Signs your camera needs a CLA:
- Shutter speeds feel sluggish or inconsistent
- The mirror is slow to return after firing
- The focus feels stiff or gritty
- Light leaks appear on developed film
- The camera hasn't been serviced in over a decade
I recently did a full CLA on my Minolta X-700 — cleaned the shutter blades, replaced the light seal foam, and re-lubricated the film advance mechanism. The difference was immediate. Shutter speeds that had drifted by 30% at 1/500 s came back into spec. The camera went from unreliable to trustworthy.
A CLA is the single most impactful service you can do on an aging film camera. If you are comfortable with precision work, the mechanical parts of a CLA are learnable. The adjustment steps — particularly shutter calibration — require a shutter speed tester.
Essential tools for film camera repair
Quick answer: The core toolkit for film camera repair includes JIS screwdrivers, precision pliers, tweezers, a soldering iron, isopropyl alcohol, light seal foam, and a shutter speed tester. A ultrasonic cleaner is a major upgrade for cleaning small mechanical parts.
One important note before buying anything: Japanese cameras use JIS screws, not Phillips. They look nearly identical but a Phillips screwdriver will strip JIS screws immediately. Always use JIS drivers on Japanese cameras — Minolta, Nikon, Canon, Olympus, Pentax.
Essential tools:
- JIS screwdrivers — precision set, sizes 0 and 1. Non-negotiable for Japanese cameras.
- Precision pliers — smooth-jaw needle-nose. For springs, clips, and small parts.
- Tweezers — stainless steel, fine-tip. Essential for handling screws and foam strips.
- Multimeter / voltmeter — for diagnosing light meters, electronic shutters, and capacitor issues.
- Soldering iron — for capacitor replacements and electrical repairs. A temperature-controlled station is worth the investment.
- Ultrasonic cleaner — high-frequency sound waves clean mechanical parts without manual scrubbing. Transformed my repair workflow.
- Isopropyl alcohol (90%+) — universal cleaner for shutter blades, contacts, and mechanisms. Lighter fluid also works for some applications.
- Light seal foam — pre-cut kits are available for most common camera models. Replacing deteriorated foam eliminates light leaks immediately.
- Blower / puffer — for removing dust from mirrors, sensors, and viewfinders without contact.
- Spanner wrench — for removing lens elements and retaining rings. I fabricated my own from a modified screwdriver for specific Minolta lens groups.
- Shutter speed tester — essential for verifying shutter accuracy before and after any service. More on this below.
Common film camera repairs
Quick answer: The most common film camera repairs are light seal replacement, failed capacitors in electronic cameras, sticky or slow shutters, and deteriorated lubricants causing stiff focus or advance mechanisms. Most are accessible to a careful home technician.
Light seal replacement
Light seals are strips of foam that line the film door and prevent light leaks. After 20–30 years, this foam crumbles into a sticky residue that causes light leaks on film. Replacement kits are inexpensive and available for most cameras. This is one of the most approachable repairs for beginners — clean out the old foam with isopropyl alcohol and tweezers, cut the new foam to size, and press it in place. I did this on my Minolta X-700 as part of its CLA.
Bent shutter speed selector pins
On many mechanical SLRs, the shutter speed is selected via a set of small pins or cams that engage with the speed control mechanism. Over time — or after a drop — these pins can bend slightly, causing certain speeds to behave erratically or not engage at all. I've had cameras where 1/250 s simply didn't exist anymore because the corresponding pin was no longer making proper contact. Straightening these pins requires fine tweezers and patience, and verifying the result always requires a shutter speed tester.
Failed capacitors — the Minolta problem
Electronic Minolta cameras from the late 1970s–80s are notorious for capacitor failure. The X-300, X-500, X-700, and X-570 all use an electrolytic capacitor that degrades over time. When it fails, the camera stops firing, the meter misbehaves, or the shutter freezes. My first repair was replacing the capacitor in a Minolta X-300 — once identified with a multimeter and replaced with a modern equivalent, the camera returned to full function. This repair requires a soldering iron and basic electronics knowledge.
Sticky or slow shutter
Shutter blades coated in old oil move slowly or stick open. The fix is cleaning the blades with a very small amount of lighter fluid or naphta applied carefully with a fine brush or cotton swab. This is a delicate repair — too much solvent and you risk damaging the blades. After cleaning, always verify the speeds with a shutter speed tester.
Defective light meter — the Rollei 35S

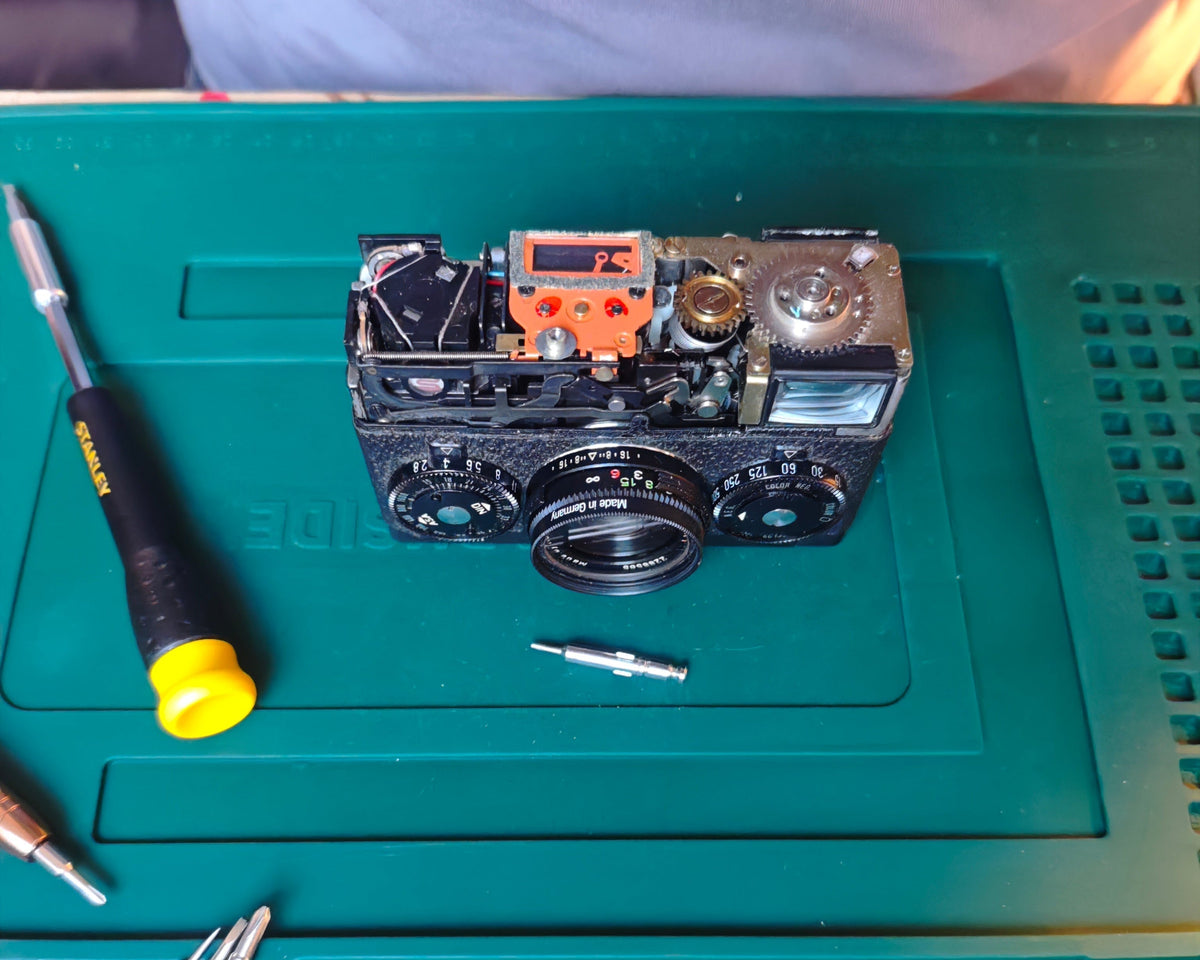

My Rollei 35S had a completely unresponsive light meter. After opening the camera and tracing the metering circuit with a multimeter, I found the issue.
It was a small contact piece had oxidised and broken, interrupting the circuit entirely.
With no replacement part available, I improvised. I removed the broken contact, then soldered a small ball of tin solder onto the remaining wire. I then carefully flattened and shaped that ball to approximate the geometry of the original contact piece. Once reinstalled, the circuit was complete again — and the meter came back to accurate operation.
This kind of repair is what film camera servicing is really about. Not every fix comes from a parts catalogue. Sometimes you work with what you have, and a background in precision engineering makes that possible.
How to fix the shutter on a film camera
Quick answer: Fixing a film camera shutter involves cleaning shutter blades with solvent to remove old oil, checking and replacing worn foam dampers, and verifying shutter speed accuracy with a dedicated tester. Adjustment of shutter speeds requires disassembly and access to the speed control mechanism — best left to technicians unless you have experience.
The shutter is the most critical component in a film camera. A shutter running 30% slow at 1/500 s will overexpose every frame shot in bright light — with no visible warning until you develop the film.
The repair process depends on the shutter type:
Focal-plane shutters (most SLRs) use two cloth or metal curtains that travel across the film plane. Issues: slow speeds from old lubricant, curtain damage, foam damper deterioration. Cleaning and re-lubricating the shutter mechanism is possible but requires significant disassembly on most cameras.
Leaf shutters (rangefinders, compact cameras, medium format) use overlapping metal blades. Issues: sticky blades from old oil migration. Cleaning with solvent is often effective without full disassembly.
After any shutter work — cleaning, adjustment, or full service — measuring actual shutter speeds is not optional. You cannot judge shutter accuracy by ear or by feel.
How to test shutter speed accuracy
Quick answer: Shutter speed accuracy is tested by measuring the actual duration of light passing through the shutter opening and comparing it to the marked speed. Dedicated hardware testers are the most reliable method — smartphone apps introduce timing errors above 1/125 s, making them unreliable for the speeds where accuracy matters most.
Most technicians accept a tolerance of ±⅓ EV. Beyond that, exposure errors become visible on film. At 1/500 s and faster, even a 15% deviation is enough to consistently overexpose in bright conditions.
This guide covers how shutter speed testing works, what separates a good result from a bad one, and why dedicated hardware outperforms every workaround currently available.
For a detailed breakdown of all testing methods and why dedicated hardware outperforms apps and oscilloscopes, read our guide: How to Test Film Camera Shutter Speed Accuracy.
Methods available:
- Smartphone apps — use the microphone to detect the shutter sound. Cheap and accessible, but audio latency makes results unreliable above 1/125 s.
- DIY testers — a light sensor and microcontroller. Accuracy depends entirely on the circuit design. Good builds can be reliable; most introduce uncertainty at high speeds.
- Oscilloscope + photodiode — gives the most complete picture of shutter behaviour, but slow to set up for each camera on the bench.
- Dedicated shutter speed tester — purpose-built hardware designed for bench workflow. Point the sensor, trip the shutter, read the result immediately.
I built Photon-1 specifically because no existing tester answered the real questions a repair technician needs: not just the overall speed, but both curtain travel times independently, the inter-curtain delta, and the deviation from nominal — all without a PC on the bench.
Frequently Asked Questions
Is it worth repairing an old film camera?
Yes, in most cases. If the camera body is intact and the shutter fires, a full service typically costs €30–150 and returns the camera to reliable operation. Mechanical cameras from the 1960s–80s are built to last decades with basic maintenance.
How much does a film camera CLA cost?
A professional CLA from a specialist technician typically costs €60–150 depending on the camera and its condition. Simple cameras like the Olympus OM-1 tend to be cheaper to service than complex cameras like the Nikon F3. A DIY CLA costs only parts and time if you have the tools.
Can I repair a film camera myself?
Yes, for many common repairs. Light seal replacement, capacitor replacement, and basic cleaning are accessible to careful home technicians. Shutter calibration and complex disassembly require more experience and the right tools, including a shutter speed tester to verify results.
How do I know if my shutter needs adjustment?
The only reliable way to know is to measure it with a shutter speed tester. Exposure issues on film — consistent overexposure or underexposure at specific shutter speeds — are a strong indicator. A shutter that sounds right can still be running 30% slow at high speeds.
What is the most common failure in electronic film cameras?
Capacitor failure is the most common cause of complete failure in electronic Minolta cameras from the late 1970s and 80s — the X-300, X-500, X-570, and X-700. The symptom is a camera that stops firing entirely or shows erratic meter behaviour. Replacement is straightforward with a soldering iron.
